SmallRig mini V-Mount Akku VB99

SmallRig 3580 mini V-Mount Akku VB99

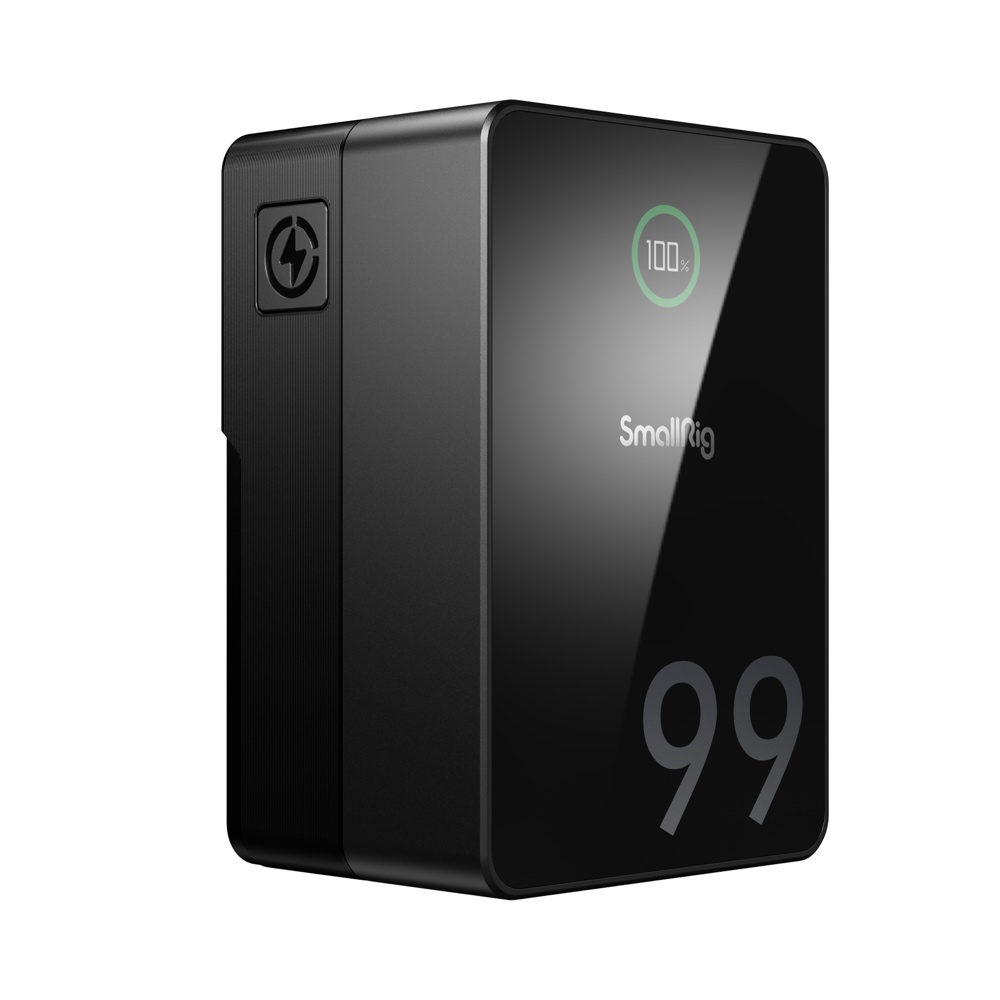

VB99 mini V Mount Battery is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols, bi-directional 65W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.!In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc.

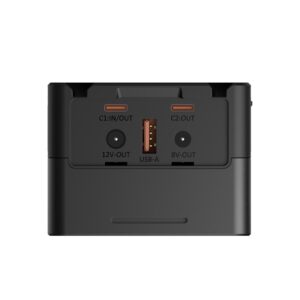

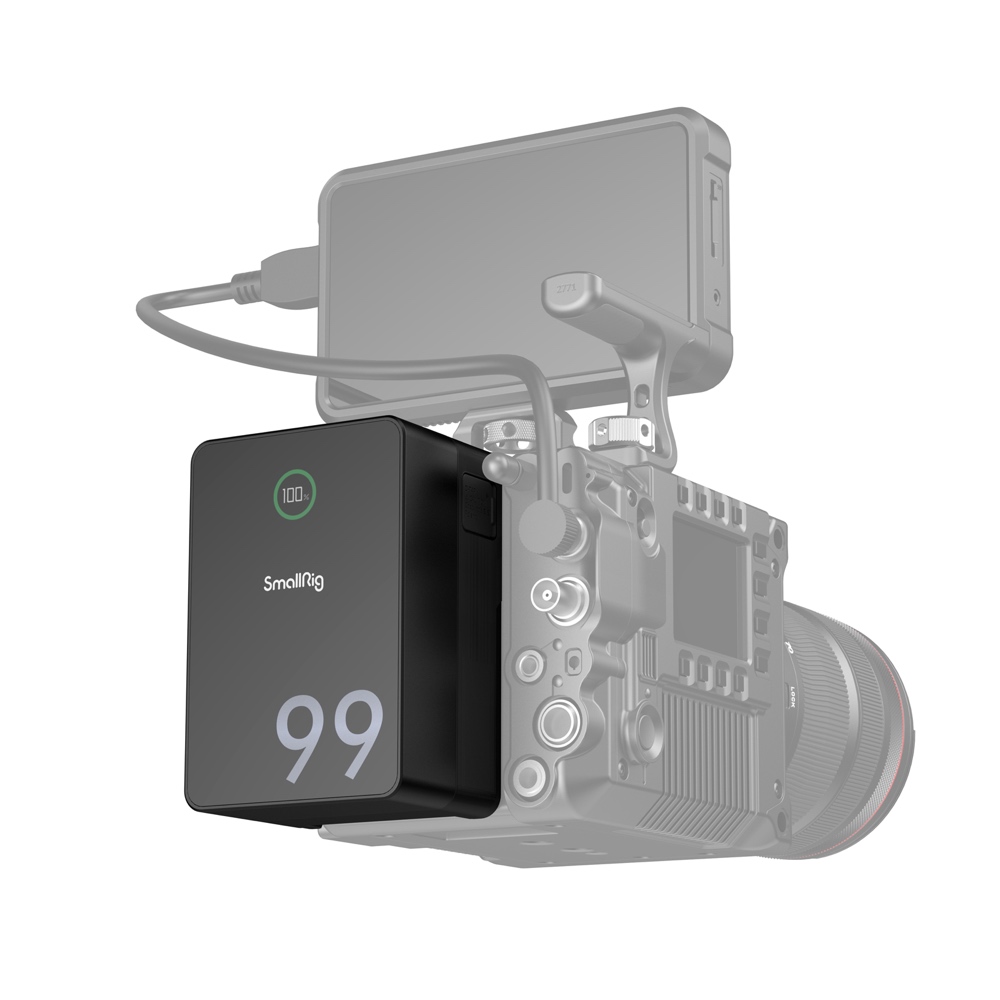

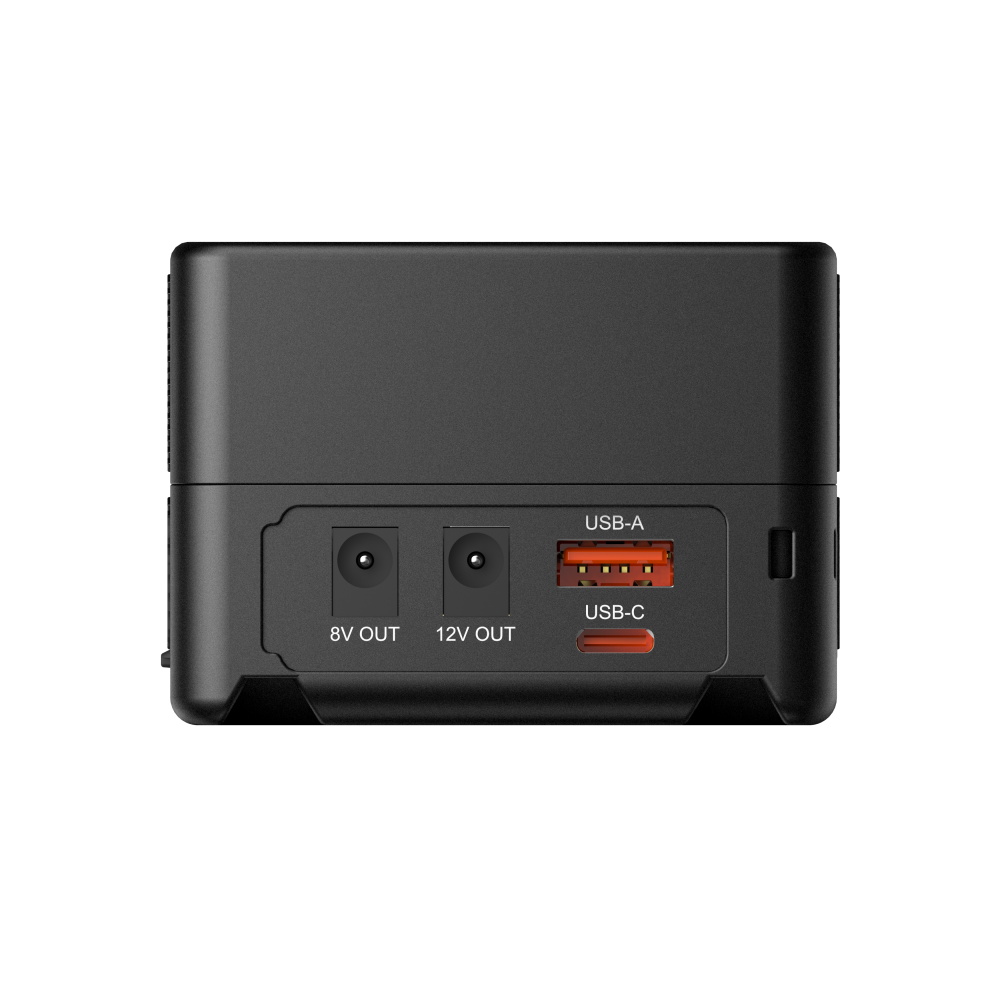

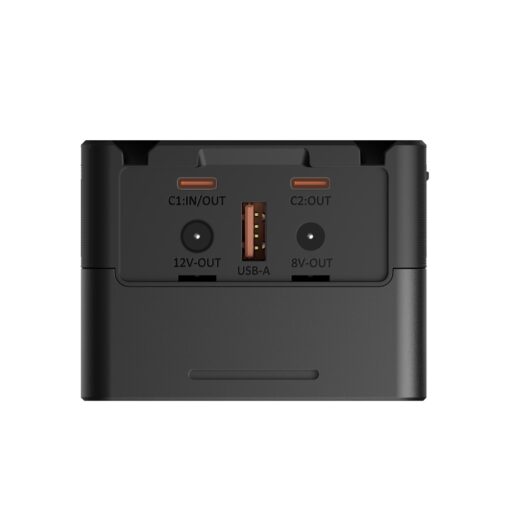

Such interfaces are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery’s status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!

• Material: Fireproof PC
• Capacity: 14.8V 6.7Ah 99Wh
• Rated Power: Discharge: 99W  Charge: 65W
• V Mount / D-TAP Input: 8A (max.)
• V Mount / D-TAP Output: 14.8V/14A (max.)
• USB-A Output: QC2.0/QC3.0/AFC/FCP/SCP/DCP-1.5A / APPLE-2.4A: QC2.0 / AFC/FCP: 5V/3A, 9V/3A, 12V/2A, QC3.0: 4.2-9V/3A, 9-12V/2A, SCP: 4.5V/5A, 5V/4.5A, DCP-1.5A: 5V/1.5A, APPLE-2.4A: 5V/2.4A
• USB-C Input/Output, Input 65W (max.), Output 65W (max.): PD3.0/QC2.0/QC3.0/PPS, / AFC/FCP/SCP/DCP-1.5A,  APPLE-2.4APD3.0: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, QC2.0/AFC/FCP: 5V/3A, 9V/A, 12V/2A, QC3.0: 4.2-9V/2A, 9-12V/2A, SCP: 4.5V/5A, 5V/4.5A, DCP-1.5A: 5V/1.5A, PPS: 3.3-21V/3A, APPLE-2.4A: 5V/2.4A
• DC1 Output: 8V/max. 3A
• DC2 Output: 12V/max. 3A
• Cutoff Voltage: 11V
• Optional Charging Method: 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 65W)
